Belzona 5111
Ceramic Cladding
A 2-part urethane coating for the protection of metallic and masonry surfaces against chemical, abrasive and corrosive attack.
A durable, 2-part urethane coating designed for the protection of metallic and masonry surfaces to provide long-term chemical, corrosion and abrasion resistance.
- SeriesBelzona 5000 Series
- Approvals2
- Documents3
Overview of Belzona 5111
A 2-part urethane coating designed for the protection of metallic and masonry surfaces against physical, chemical and bacterial attack. This durable material is ideal where toughness, environmental, erosion and corrosion resistance are required, yet providing a highly decorative non-toxic surface which is easy to clean by commonly used cleaning agents.

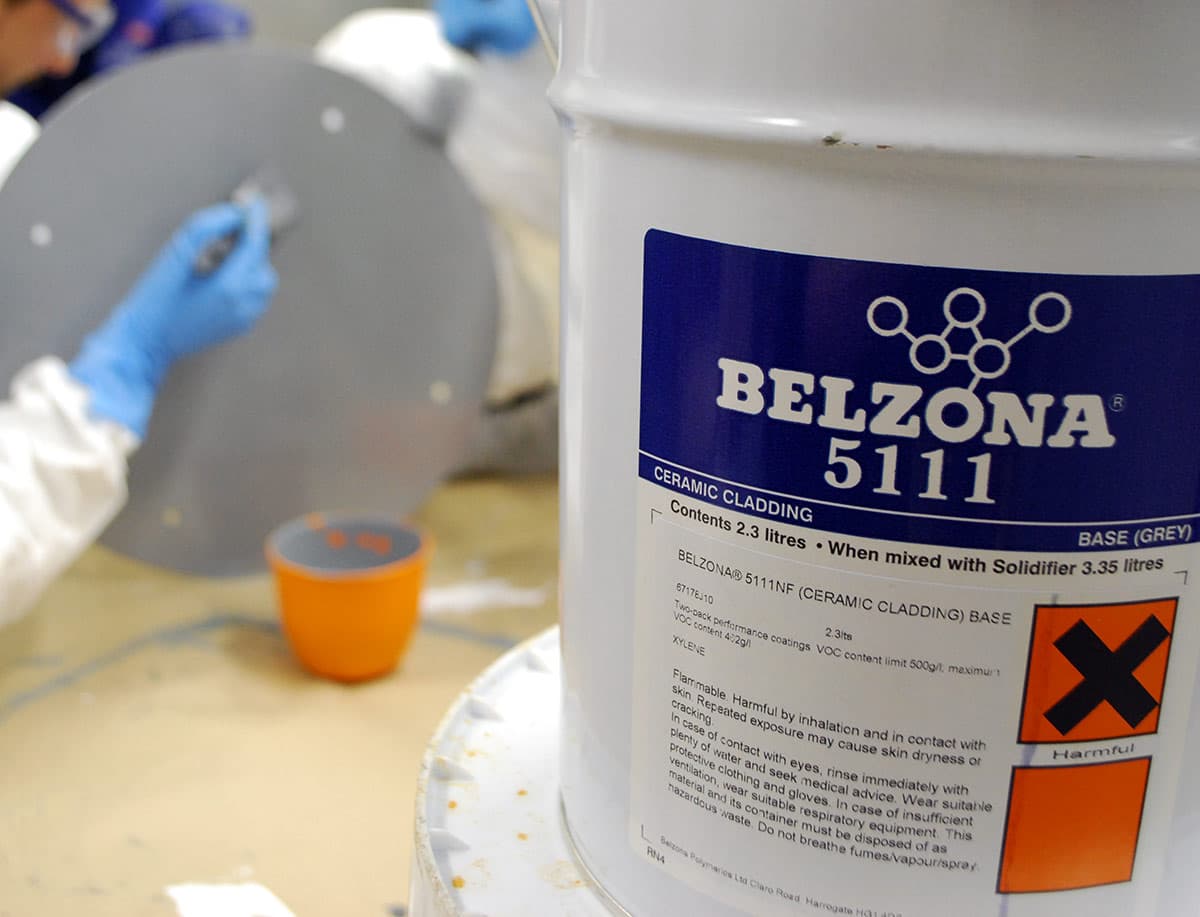

Belzona 5111 (Ceramic Cladding) is easy to mix and can be applied by brush or spray without the need for specialist tools. It will cure at room temperature, eliminating the need for hot work.
Key Benefits
Cures at room temperature without hot work
Applied by brush or spray for fast and efficient coverage
Outstanding resistance to a wide range of chemicals
Excellent UV and environmental weathering resistance for outdoor exposure
Application Areas
What this product handles, grouped by equipment area — each links to the full application.
Tanks & Chemical Containment Areas

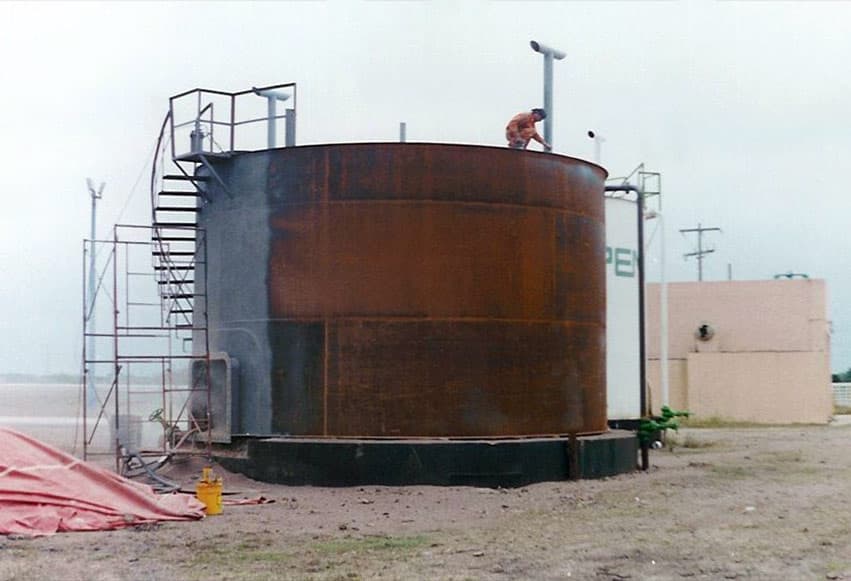

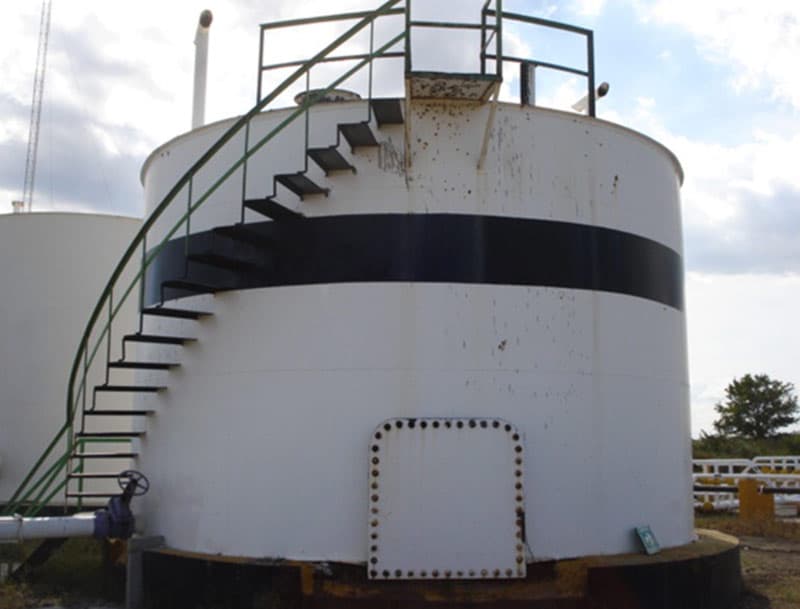

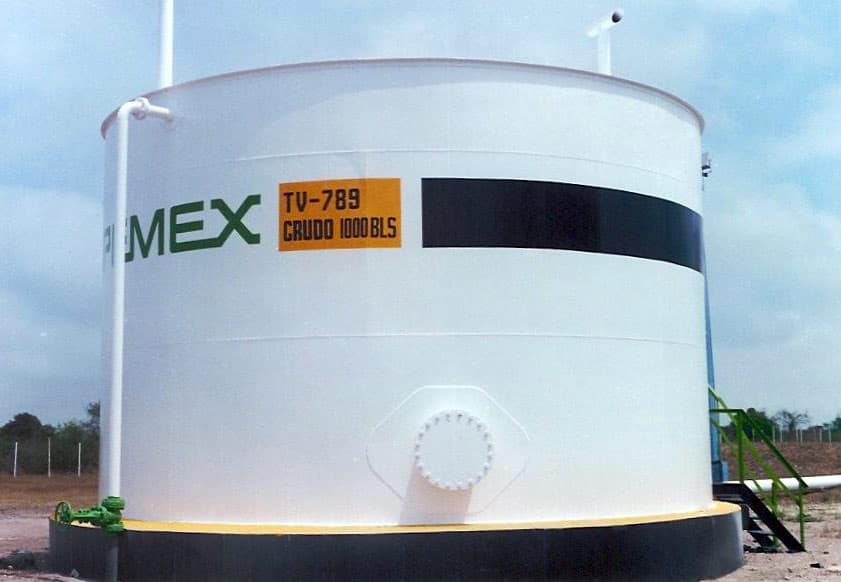

3 applications- External pipe & tank corrosion protectionCoating of pipelines prone to corrosion damageLearn more
- Fan blade abrasion protectionAbrasion protection of fan blades for a long-term performanceLearn more
- Structural steel & surface coatingCorrosion and weatherproofing protection of structural surfaces such as bridges, cooling towers and wallsLearn more
HVAC & Refrigeration Equipment
1 applicationTechnical Data
Film Thickness & Coverage
- Wet Film Thickness per Coat
- 70 microns (2¾ mils)
- Dry Film Thickness per Coat
- 38 microns (1½ mils)
- Coverage on Steel
- 14.0 m² (151 sq ft) per liter
- Coverage on Smooth Concrete
- 11.0 m² (119 sq ft) per liter
- Coverage on Smooth Brick
- 10.0 m² (108 sq ft) per liter
Mechanical Properties
- Scratch Resistance (BS 3900 Part E2)
- Pass 2,000 grams
- Impact Resistance (BS 3900 Part E3)
- Pass 1/16 inch (1.5 mm)
- Extensibility (ASTM D522 Conical Mandrel)
- >34%
- Sliding Abrasion (ASTM D4060, CS17 wheels, 1 kg)
- 30 mm³ loss per 1,000 cycles
Hardness
- König Pendulum at 68°F (20°C)
- 116 seconds
- König Pendulum at 140°F (60°C)
- 139 seconds
- König Pendulum at 212°F (100°C)
- 151 seconds
Adhesion
- Cross Hatch (BS 3900 Part E6) on steel
- Class 0 (100% pass)
- Pull-Off Adhesion over Belzona 5911
- 550 psi (3.79 MPa)
- Pull-Off Adhesion over Belzona 6111
- 1,500 psi (10.3 MPa)
Corrosion & Weathering
- Salt Spray (BS 3900 Part F4)
- No rusting, blistering or flaking after 2,000 hours
- Accelerated Weathering (BS 3900 Part F3)
- No discoloration, gloss loss, blistering, flaking or rusting after 3,000 hours
Food Contact Approvals
- USDA
- Compliant for Incidental Food Contact
- FDA
- Meets 21 CFR 175.300 (paragraph c) for Water in Condition of Use E (paragraph d)
Working Life
From commencement of mixing, use within:
- At 68°F (20°C)
- 8 hours
Touch Dry
- At 68°F (20°C)
- 6 hours
Overcoat Times
- Minimum overcoat time
- 8 hours
- Maximum overcoat time
- 2 days
Full Cure
- 7 days at 68°F (20°C)
Service Temperature Limits
- Application Temperature Range
- 41°F to 104°F (5°C to 40°C)
- Maximum Dry Heat
- 392°F (200°C)
- Wet Service
- Not recommended for permanent immersion; satisfactory in splashing and spillage situations up to 140°F (60°C)
Mixing & Application
Certifications & Approvals
Product PDFs
Gallery
Frequently Asked Questions
What surfaces is Belzona 5111 (Ceramic Cladding) designed for?

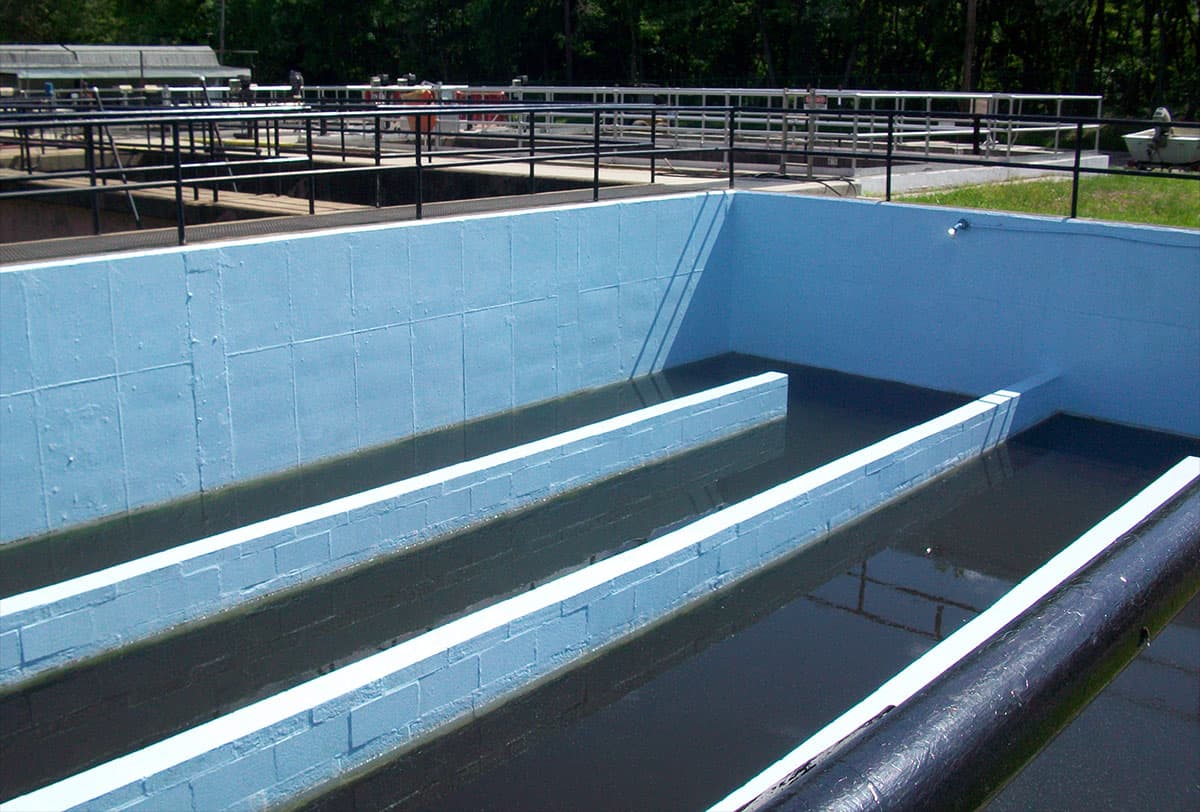

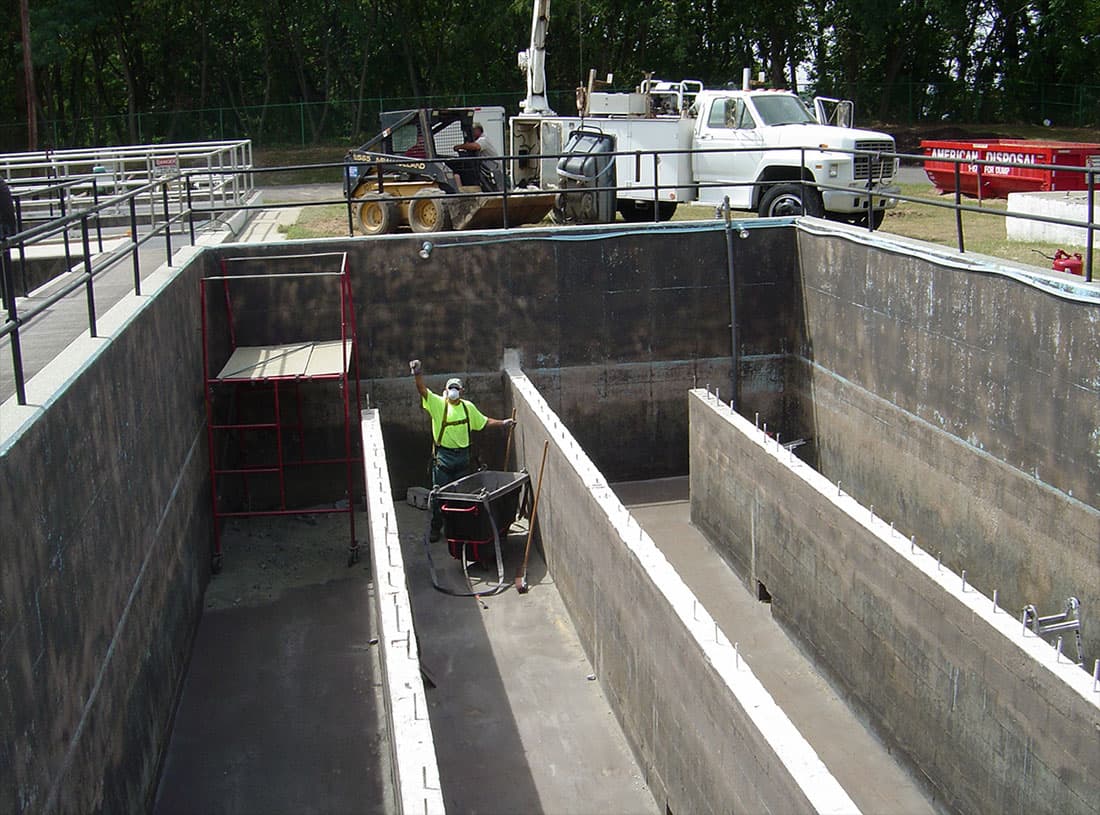

Belzona 5111 is designed for the protection of metallic and masonry surfaces, including all structural steelwork, walls, floors, pipes, external tank surfaces, cooling towers, and bridges. Pre-treatment varies by substrate: ferrous surfaces require two coats of Belzona 6111 (Liquid Anode), while cementitious and non-ferrous metallic surfaces require one coat of Belzona 5911 (Ceramic Conditioner) prior to topcoating.
How is Belzona 5111 applied?
Belzona 5111 is applied by brush or spray after appropriate substrate pre-treatment. The mixed material has a usable life of 8 hours at 77°F (25°C). For ferrous surfaces, two coats of Belzona 5111 are applied at a wet film thickness of 70 microns (2¾ mils) per coat over the Belzona 6111 primer. For non-ferrous surfaces, one coat of Belzona 5111 is applied over the Belzona 5911 conditioner. Application should not be carried out below 41°F (5°C) or above 104°F (40°C).
What chemicals does Belzona 5111 resist?
Belzona 5111 has excellent resistance to a broad range of chemicals including alcohols, alkalis, salts, oils, hydrocarbons, fertilizers, acids and oxidising agents. It also offers excellent bacterial resistance and is USDA compliant for incidental food contact and meets FDA 21 CFR 175.300 extraction requirements for water in Condition of Use E. Although not recommended for total immersion applications, it is suitable for splashing and spillage situations up to 140°F (60°C) wet. Refer to the relevant Chemical Resistance Chart for specific data.
