Belzona 4411
Granogrip Anti-Slip Surfacing
A three-component anti-slip surfacing with aluminum oxide aggregate — durable non-slip protection for floors, ramps, walkways, and equipment.
A three-component anti-slip surfacing system with aluminum oxide aggregate that provides a durable non-slip surface on steel, concrete, quarry tile, and wood. Available in Gray and Safety Yellow.
- SeriesBelzona 4000 Series
- Approvals1
- Documents4
Overview of Belzona 4411
Belzona 4411 (Granogrip) is a three-component anti-slip surfacing system consisting of a colored thixotropic Base, liquid Solidifier, and aluminum oxide Aggregate. Available in two Base colors — Gray and Safety Yellow — with dark gray Belzona 9211 (Supergrip) or white Belzona 9221 (Surefoot White) aggregate at 95.2% Al₂O₃. The system delivers a durable non-slip surface with excellent adhesion (greater than 2,330 psi pull-off on grit-blasted quarry tile), wear resistance (124 mm³ Taber loss), and chemical resistance.
Suitable for application to steel, concrete, quarry tile, and wood substrates. Coverage rate of 13.7–25 sq.ft. (1.25–2.30 m²) per 800 g unit varies with aggregate selection and substrate. Industry-recognized approvals from U.S.D.A., General Motors, Ford, Florida DOT, and Paper Board Industries Corporation.
Key Benefits
Outstanding protection against wear, impact and abrasion
Exceptional compressive strength for load-bearing applications and demanding mechanical environments
No solvents, no shrinkage during cure
Bonds strongly to virtually any rigid surface
100% solids formulation reduces health and safety risks in confined spaces with no shrinkage on cure
Application Areas
What this product handles, grouped by equipment area — each links to the full application.
Floor Problem Areas
9 applications- Anti-slip & non-slip surfacingNon-slip blinding over coated bridge decks, walkways, and stair treadsLearn more
- Chemical containment area floorsChemical storage tank topsLearn more
- Concrete structures & openingsVertical structures and adjacent wallsLearn more
- Decorative non-slip finishesDecorative non-slip finishes where a light or white finish is desiredLearn more
- Slip-resistance in floors, stairs, walkwaysOSHA's slip-resistance threshold for walking surfaces is a SCOF of 0.5, and process spills, oil tracking, and worn aggregate quickly drop the working surface below that…Learn more
- Slip-resistant flooring locationsQuarry tile, wooden decks, and fiberglass boat decksLearn more

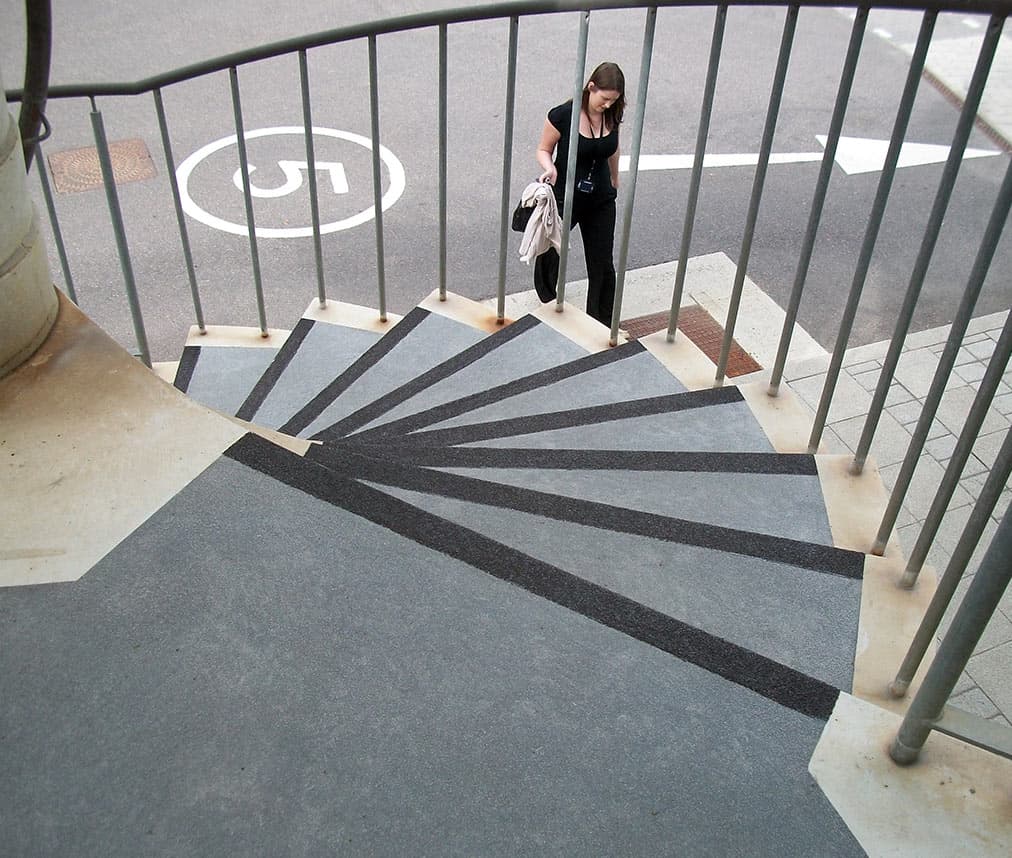

- Stairs, walkwaysStair tread nosings wear faster than the rest of the surface because every footfall concentrates load on the leading edge, and replacement-grade stair refinishing usuall…Learn more
- Structural walkway coatingElevated walkways and process-platform decks lose integrity at expansion joints and around penetrations, where standing water finds the substrate and freeze-thaw loosens…Learn more
- Warehouse & forklift traffic floorsWarehouse forklift traffic surfaces and loading docksLearn more
Technical Data
Composition
- Type
- Three-component (Base + Solidifier + Aluminum Oxide Aggregate) anti-slip surfacing
- Mixing Ratio (Base : Solidifier) by Weight
- 2.5 : 1
- Mixing Ratio (Base : Solidifier) by Volume
- 2.0 : 1
- Aggregate Quantity
- As desired for the chosen non-slip texture
Components
- Base
- Thixotropic liquid, Yellow or Gray, gel strength greater than 200 g/cm, specific gravity 1.17–1.25
- Solidifier
- Clear liquid, viscosity 1–2 poise at 77°F (25°C), specific gravity 1.00
- Aggregate, Belzona 9211 (Supergrip)
- Dark gray, Al₂O₃ typically 95.2%, density 3.95 g/cm³. Sieve: 12 mesh 100% passing, 16 mesh 0–20% retained, 18 mesh min 45% retained, 18–20 mesh min 70% retained, 25 mesh max 3% passing
- Aggregate, Belzona 9221 (Surefoot White)
- White, Al₂O₃ typically 95.2%, density 3.94 g/cm³. Sieve: 18 mesh 100% passing, 25 mesh 0–25% retained, 30 mesh min 45% retained, 30–35 mesh min 65% retained, 40 mesh max 3% passing
- Sag Index (mixed)
- Min 40 mil (1 mm)
Application & Coverage
- Coverage Rate
- 13.7–25 sq.ft. (1.25–2.30 m²) per 800 g unit (varies with aggregate selection and substrate)
- Volume Capacity
- 43 cu.in. (713 cm³) per 800 g unit
Compressive Properties (ASTM D695, 68°F/20°C cure & test)
- Compressive Strength
- 18,459 psi (127.3 MPa)
- Proportional Limit
- 6,901 psi (47.6 MPa)
- Young's Modulus
- 1.67 × 10⁵ psi (1,151.1 MPa)
Flexural Properties
- Flexural Strength (ASTM D790)
- 7,800 psi (53.8 MPa)
Adhesion
- Tensile Shear, grit blasted mild steel (ASTM D1002)
- 3,500 psi (24.1 MPa)
- Pull-off, dry concrete (ASTM D4541)
- 930 psi (6.41 MPa)*
- Pull-off, damp concrete
- 1,040 psi (7.17 MPa)*
- Pull-off, dry grit blasted quarry tile
- 2,330 psi (16.1 MPa)*
- Pull-off, dry grit blasted quarry tile after total water immersion
- 2,110 psi (14.5 MPa)*
- * Failure in the substrate material
Abrasion (Taber, ASTM D4060)
- Resin only, no aggregate (H10 wheels, dry, 1 kg load, per 1,000 cycles)
- 124 mm³
Impact Resistance
- Izod Reversed Notched (ASTM D256, 68°F cure)
- 6.2 KJ/m² (78.4 J/m)
- Izod Un-Notched (ASTM D256, 68°F cure)
- 7.1 KJ/m² (75.5 J/m)
- Falling Weight (ASTM D2794)
- 59 inch-lb (6.6 Nm)
Heat Resistance
- HDT (ASTM D648, 264 psi fiber stress)
- 109°F (43°C)
- Thermal Stability
- 392°F (200°C) for many typical applications
Color Stability
- Coating alone shows no more than very slight discoloration after 100 hours QUV Accelerated Weathering Tester exposure
- Aggregate use extends color stability; indoor color stability is excellent
Approvals/Acceptances
- U.S.D.A.
- General Motors
- Ford
- Florida DOT
- Paper Board Industries Corporation
Chemical Resistance
- Excellent resistance to a broad range of chemicals once fully cured
- Refer to Chemical Resistance chart for detailed compatibility information
Shelf Life
- Separate Base and Solidifier components have a 5-year shelf life from date of manufacture in original unopened containers stored between 32°F (0°C) and 86°F (30°C)
Working Life
From commencement of mixing, use within:
- 41°F (5°C)
- 60 minutes
- 59°F (15°C)
- 40 minutes
- 77°F (25°C)
- 30 minutes
- 86°F (30°C)
- 25 minutes
Curing Time
Allow Belzona 4411 to solidify before subjecting it to the conditions indicated:
At 41°F (5°C)
- Light pedestrian traffic
- 24 hours
- Full traffic / loading
- 4 days
- Chemical contact
- 10 days
At 50°F (10°C)
- Light pedestrian traffic
- 15 hours
- Full traffic / loading
- 3 days
- Chemical contact
- 8 days
At 59°F (15°C)
- Light pedestrian traffic
- 9 hours
- Full traffic / loading
- 2 days
- Chemical contact
- 6 days
At 68°F (20°C)
- Light pedestrian traffic
- 6 hours
- Full traffic / loading
- 1½ days
- Chemical contact
- 4 days
At 77°F (25°C)
- Light pedestrian traffic
- 4 hours
- Full traffic / loading
- 24 hours
- Chemical contact
- 3 days
At 86°F (30°C)
- Light pedestrian traffic
- 3 hours
- Full traffic / loading
- 12 hours
- Chemical contact
- 2 days
Service Temperature Limits
- Heat Distortion Temperature (ASTM D648, 264 psi fiber stress)
- 109°F (43°C)
- Thermal Stability
- Up to 392°F (200°C) for many typical applications
- Storage Temperature
- 32°F (0°C) to 86°F (30°C) in unopened containers
Certifications & Approvals
Product PDFs
Gallery
Videos
Frequently Asked Questions
What is Belzona 4411 (Granogrip) used for?
Belzona 4411 (Granogrip) is an anti-slip surfacing system designed to improve safety on walkways, ramps, stair treads, and work platforms. The granular surface provides aggressive grip in wet, oily, or contaminated conditions and is widely used on offshore platforms, industrial flooring, and access routes.
What is the mixing ratio of Belzona 4411 (Granogrip)?
The mixing ratio of Belzona 4411 (Granogrip) is 2.5 : 1 (Base : Solidifier) by weight and 2.0 : 1 (Base : Solidifier) by volume. Please see the Product Specification Sheet (PSS) for more information.
How do you apply Belzona 4411 (Granogrip)?
To apply Belzona 4411 (Granogrip), the surface must be clean, firm, and dry, free of rust, paint, and other contaminants, and conditioned with Belzona 4911 (Magma TX Conditioner). Mix the Base and Solidifier until homogeneous, then apply to the prepared surface using a brush or roller. While the coating is still wet, broadcast the supplied aggregate evenly across the surface for the desired anti-slip profile. Once cured, sweep off the loose aggregate. Please see the Instructions for Use (IFU) for more information.
