Belzona 7000 Series

Belzona 7211

Deep Pour Grout

FN10192

An epoxy based system specifically designed as a deep pour grout for up to 20.5 cm (8 in). The system offers high compressive strength, excellent creep resistance and minimal shrinkage.

Belzona 7211 is a three-component, 100% solids, VOC free epoxy system suitable for deep pour grouting of large machine bases, setting large levelling wedges and sole plates. It offers rapid strength development, superior creep resistance, and minimal shrinkage.

Talk to a Consultant
  • SeriesBelzona 7000 Series
  • Documents3

Overview of Belzona 7211

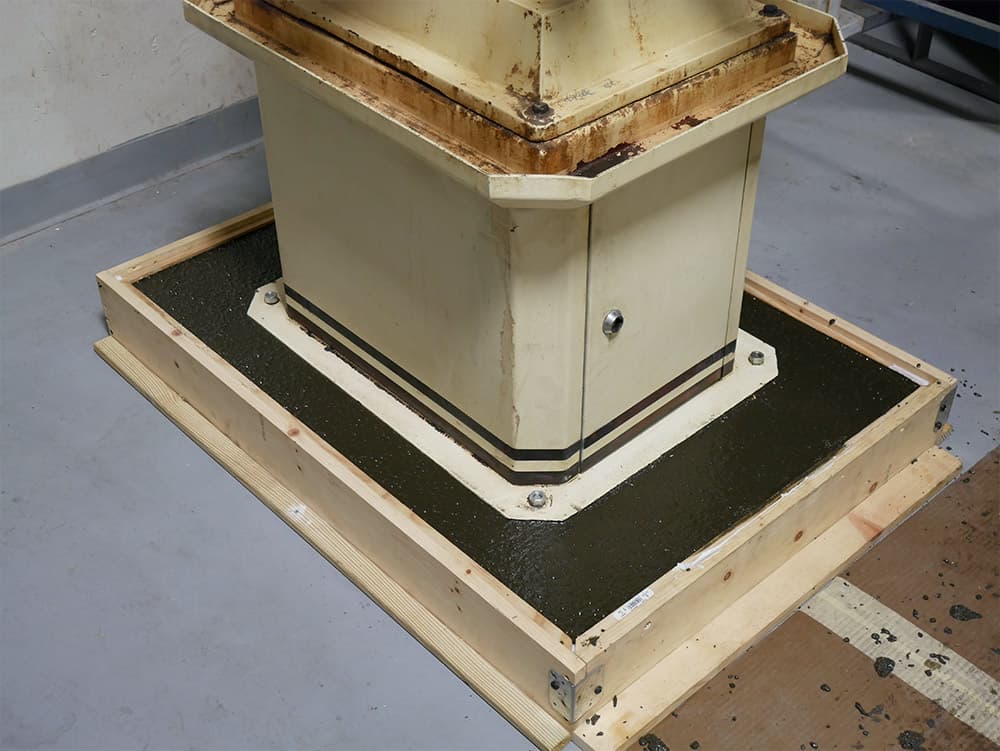

Belzona 7211 is a three-component, 100% solids, VOC free epoxy system suitable for deep pour grouting of large machine bases, setting large levelling wedges and sole plates. It offers rapid strength development, superior creep resistance, and minimal shrinkage. This product is ideally suited for the repairs performed on horizontal surfaces where self-leveling capabilities are required. This grouting compound flows into the spaces under the large machinery and fills completely before solidifying. Belzona 7211 is offered in two different flowability levels: standard and high to meet various application requirements.

Key Benefits

100% Solids

No solvents, no shrinkage during cure

High Performance

Engineered for demanding performance requirements

Cold Cure

Cures at room temperature without hot work

Excellent Adhesion

Bonds strongly to virtually any rigid surface

Application Areas

What this product handles, grouped by equipment area — each links to the full application.

Primary application area

Pumps

1 application

Technical Data

Performance Characteristics

High compressive strength
Rapid strength development
Superior creep resistance
Minimal shrinkage during cure
Excellent adhesion to concrete, brick and steel
Cold-cure system — cures at ambient temperature, no hot work
Refer to the attached Product Specification Sheet for full mechanical and engineering data

Mixing & Application

System type3-component, 100% solids, VOC-free epoxy grout
Mixed FormPourable / self-leveling
Flowabilities offeredStandard and high (selectable to suit application)
Solids Content100% (VOC-free)
Maximum pour depthUp to 20.5 cm (8 in)
Application methodPour into prepared formwork; flows into spaces beneath machinery and self-levels

Product PDFs

Videos

Frequently Asked Questions

What is Belzona 7211 designed for?

Belzona 7211 is a three-component, 100% solids, VOC-free epoxy system specifically designed as a deep pour grout for up to 20.5 cm (8 in) lifts. It is used for grouting of large machine bases, setting large levelling wedges and sole plates, installation of machinery anchor bolts, and repairs of damaged equipment foundation.

What types of machinery can Belzona 7211 support?

Belzona 7211 is suitable for deep grouting of motors, compressors, drums, vibrating screens, generators, pumps, drivers, and other rotating equipment. It is also used for foundation systems supporting compressors, satellite dishes, wind turbines, and other large baseplates and skids.

Is Belzona 7211 available in different flowabilities?

Yes. Belzona 7211 is offered in two flowability levels: standard and high. This allows the same chemistry to be specified for installations with different gap geometries and flow requirements.

Related Products

Belzona 7111

Marine Grade Chocking

Belzona 7311

Structural Adhesive
